Hilleng Main Press

Hilleng Main Press

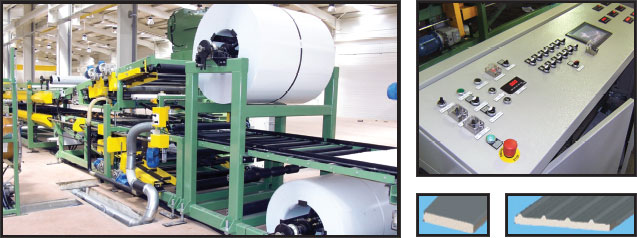

The Main Press is the heart of the Hilleng Insulating Panel Laminating System. It provides continuous panel lamination and handles infinitely adjustable widths ranging from 1,000 mm to 1,200 mm and thicknesses from 50 mm to 300 mm.

Flexibility to meet changing job requirements is engineered into every press: flexibility in your choice of core insulating materials - including EPS, Extruded EPS, Xflam, Polyurethane, PIR, or Mineral Wool; flexibility in facing materials - including Prepainted Coil Steel, Aluminum, Stainless Steel, Timber Board, and Glass Fiber products; flexibility in panel length, width, and thickness; flexibility in the automation, options, and accessories you select.

Options and Accessories

  • Profiling Bars
  • Stainless Steel Glue Tanks
  • Protective Film Mandrels
  • Steel Slitters
  • Enclosure &/or Safety Fence
  • Self-Cleaning Spray Glue System
  • Concealed Fix Profile
  • Segmented Rollers
  • Auto Pusher Table
  • Finger Jointing
  • Mineral Wool Upgrade
  • Additional Heaters
  • Auto Start
  • Hydraulic Coil Mandrels
  • Slitter Chopper/Re-winder
  • Wiper Blades & Arms
  • Extract Systems
  • Segmented Rollers
