Solutions for the Forming & Fabrication Industries


Marion Die & Fixture offers component modeling, hydraulic press systems, custom shears and benders, custom dies, inspection / assembly fixtures, and die servicing. Customers trust MDF to create solutions that meet tight tolerances and high production rates in multiple industries.

Marion Die and Fixture

Dies & Products Offered

Pierce Dies      • Emboss Dies          • Progressive Dies          • Transfer Dies          • Draw Dies          • Perforation Dies

Louver Dies      • Cut-Off Dies          • Turn-Key Systems          • Forming Dies         • Hydraulic Press Systems         • Accelerator Systems

Industries we serve include Agriculture, Appliance, Automotive, Garage Door, Lighting, HVAC, Furniture, Metal Building, and more.

Learn more about us

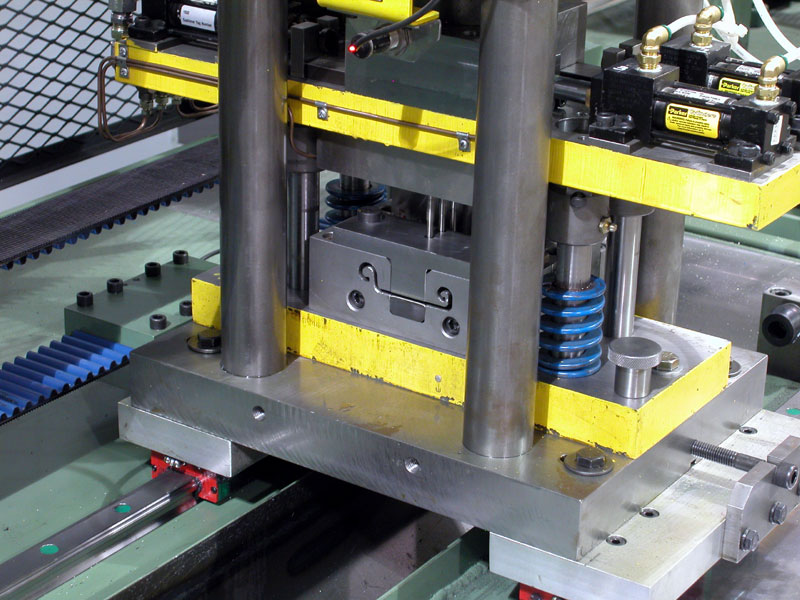

Cutoff Dies

The Bradbury Group's equipment offers several cutoff options for light and heavy-gauge material, including electronic, hydraulic, mechanical, flying, and rotary shears.

Marion Die & Fixture Slat Cutoff Die

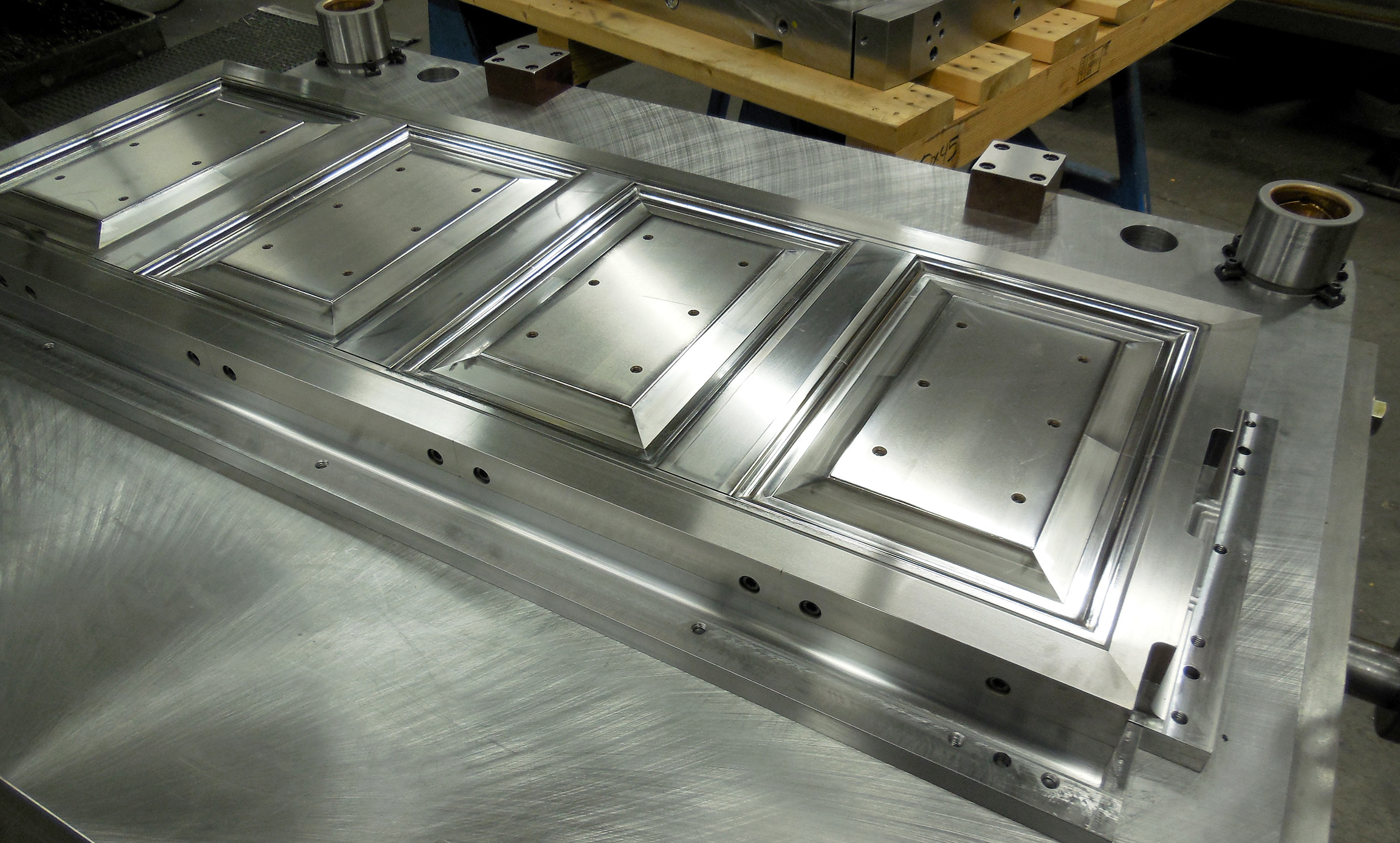

Emboss Dies

MDF has perfected emboss profiles for multiple products, including door panels.  We have developed tool designs to create emboss details up to 0.270" deep, depending on material properties.

Marion Die & Fixture emboss die

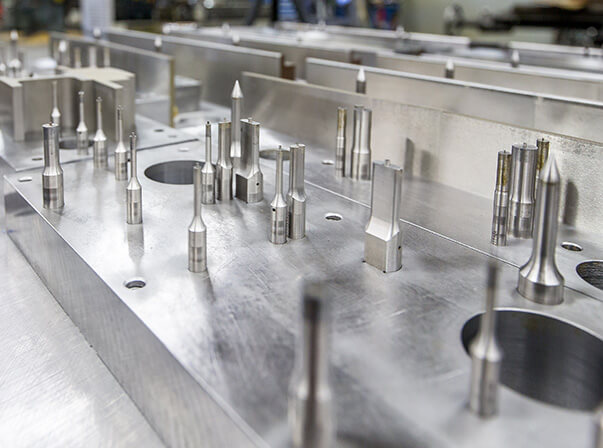

Pierce & Lance Dies

MDF has a long history of successful pierce and lance die projects in 30-gauge to 2-gauge applications.  MDF can create custom punches for specific profiles and utilize die button technology for quick maintenance and product change-over capability.

Marion Die & Fixture pierce die

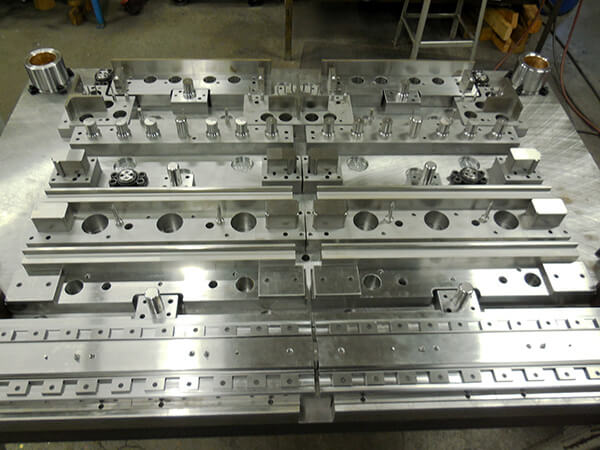

Progressive Dies

MDF designs are proven to exceed performance expectations in multi-stage progressive dies that pierce, notch, form, and part-off components through multiple die stations.  Designs are centered on balancing force requirements, sized to customer equipment, and providing the best results for formed features.

Marion Die & Fixture Progressive die

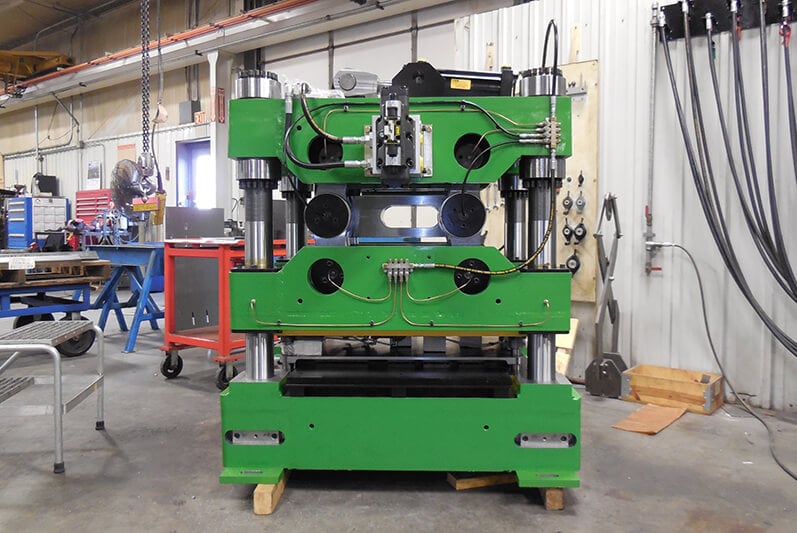

Hydraulic Presses

MDF designs and builds custom hydraulic powered presses rated at up to 200 Tons of force.  Hydraulic C-Frame, Bridge, and Toggle presses are all in our design catalogs.  We also offer custom solutions for high-speed hydraulic press applications with output up to 100 SPM at up to 30 Tons of force.  Need a press operation without line stops? – ask about our flying press solutions.

Marion Die & Fixture Hydraulic Press

Die Maintenance

MDF offers full maintenance programs for dies. We offer services from evaluation and reset to full component and tooling replacement.  MDF can service dies to your standards while documenting maintenance performed, including recommended future repairs.

Marion Die & Fixture Die Maintenance

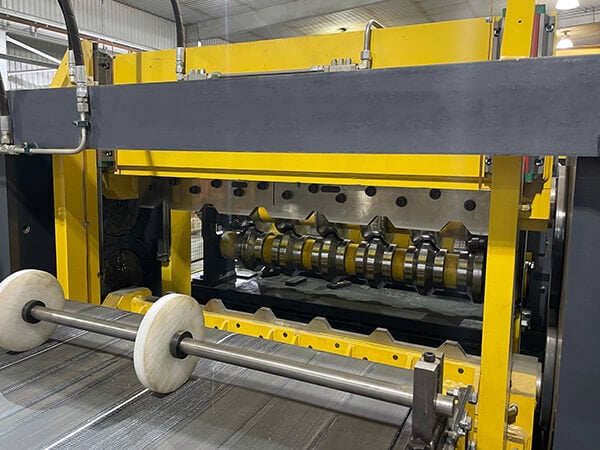

Cutoff Shear Blades

Marion Die & Fixture is a preferred industry source for new shear blades in production lines. MDF supplies profiled cutoff blades that mount on most shears, including off-line shears and shears in production lines. Read more >

Viper Post Cut off shear blade Bradbury
